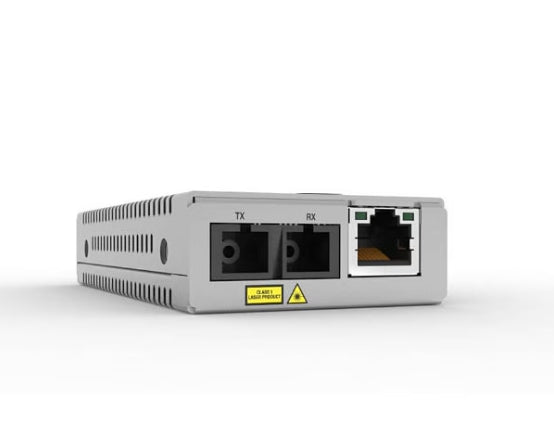

Allied Telesis AT MMC2000/SC - fiber media converter - 1GbE - TAA Compliant

Allied Telesis AT MMC2000/SC - fiber media converter - 1GbE - TAA Compliant

$499.00 USD
$536.00 USD $499.00 USD
Sale Sold out
Shipping calculated at checkout.

Quick tech specs

  • Fiber media converter
  • 10Base-T, 1000Base-SX, 100Base-TX, 1000Base-T
  • up to 1640 ft
  • TAA Compliant
  • 1GbE
  • RJ-45 / SC multi-mode
  • 850 nm



The Allied Telesis MMC2000 Series of Gigabit mini media converters leverages its smaller size to not only help the environment with a small carbon footprint, but also to save space in its working environment. Despite its compact size, the MMC2000 Series delivers all the power and functionality of standard size media converters.

Brand：Allied Telesis
Product Line：Allied Telesis AT
Model：MMC2000/SC
Manufacturer：Allied Telesis

Max Operating Temperature：122 degree Fahrenheit
Min Operating Temperature：32 degree Fahrenheit
Operating Humidity:5 - 95% (non-condensing)

Cable Type:Ethernet 1000Base-SX, Ethernet 1000Base-T, Ethernet 100Base-TX, Ethernet 10Base-T
Compliant Standards:IEEE 802.1Q
Connectivity Technology:Wired
Data Link Protocols:Gigabit Ethernet
Data Transfer Rate:1 GBps
Features:Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Jumbo Frames support, Smart Missing Link (SML), Store and forward, VLAN support
Form Factor:External
MAC Address: Table Size2K entries
Max Transfer Distance:1640 ft
Optical Wave Length:850 nm
Product Type:Fiber media converter
Status Indicators:Link/activity, Power, System

Packaged Quantity : 1

Height :0.9 inch
Weight :6 ounce
Width :2.2 inch
Depth: 4 inch

Color Category :White

Interface Provided :1 x Ethernet 1000Base-SX - SC multi-mode female x 2, 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female

Compliant StandardsCISPR 22, C-Tick, EN 55022 Class A, EN 60950-1, FCC Class A certified, UL 60950-1, VCCI
ENERGY STAR Certified    No
EPEAT Compliant             No
TAA Compliant                Yes
TCO Certified                   No

Power Consumption Operational:1.7 watt

Left Connector SD Type           RJ-45
Right Connector Type (SD)      SC multi-mode
